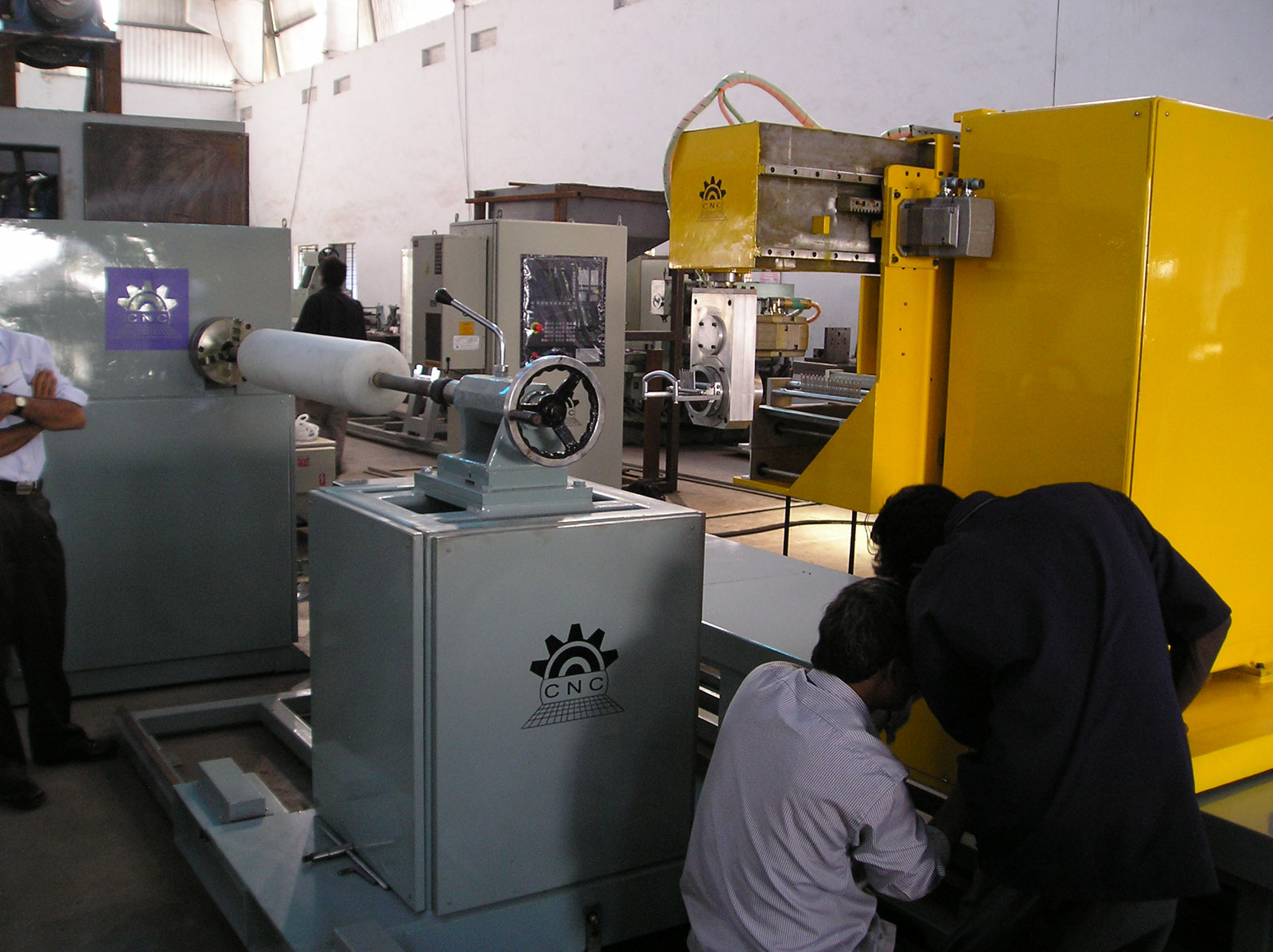

5 & 6 Axis CNC Filament Winding Machine

High Complexity. Total Control. Elite Performance.

For manufacturers with demanding winding requirements, CNC Technics offers advanced 5 axis CNC filament winding machines and 6 axis CNC filament winding machines engineered for full-spectrum composite part production. As leading filament winding machine manufacturers in India, we design high-performance systems that enable precise control over fiber angles, complex geometries, and variable thicknesses in high-speed, high-volume environments.

Axes Configuration

Mandrel Rotation (Axis 1)

Carriage Linear Movement (Axis 2)

Cross-Feed or Delivery Head Traverse (Axis 3)

Fiber Angle/Tension Adjustment (Axis 4)

Delivery Head Tilt or Rotation (Axis 5)

Optional Axis (Axis 6): Secondary carriage or mandrel translation

These multi-axis CNC filament winding machines provide unmatched flexibility for advanced composite manufacturing.

Applications

Complex aerospace components

Multi-diameter parts

Overwrapped structural elements

Helical, polar, and hoop winding with angle variation

These 5 axis and 6 axis filament winding machines are ideal for high-precision and complex industrial applications.

Key Features

Real-time CNC control of all axes

Integrated software for winding path simulation

Programmable tension control

Variable-speed, high-capacity mandrel drives

Closed-loop feedback systems for zero-error operation

Unmatched Precision & Reliability

Built with premium components from SIEMENS, THK, BONFIGLIOLI, HIWIN, and IGUS, our 5 axis CNC filament winding machines and 6 axis filament winding machines ensure reliable, high-speed winding even on geometrically complex parts.

Industries Served

Aerospace and Defense

Wind energy sector

Advanced automotive composites

Specialized sports and marine products

These industries rely on high-performance CNC filament winding machines for precision and efficiency.

Request a Custom Quote

Ready to scale your composite production? Contact leading filament winding machine manufacturers in India for tailored machine configurations, pricing details, or technical consultations for 5 axis CNC filament winding machines and 6 axis CNC filament winding machines.
